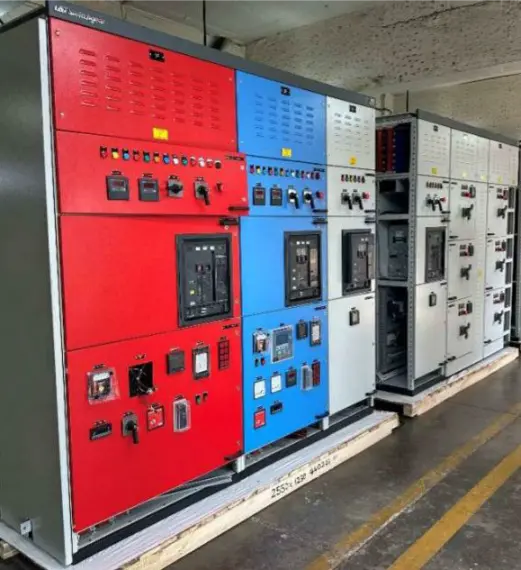

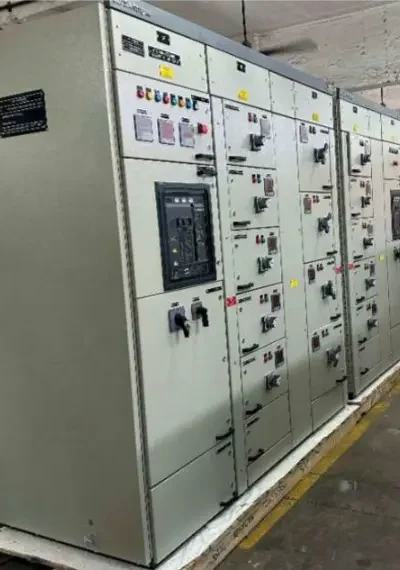

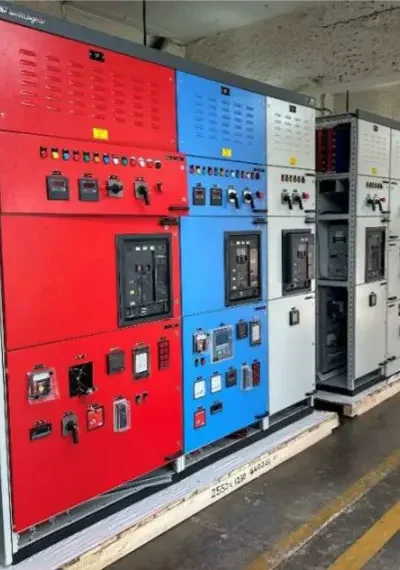

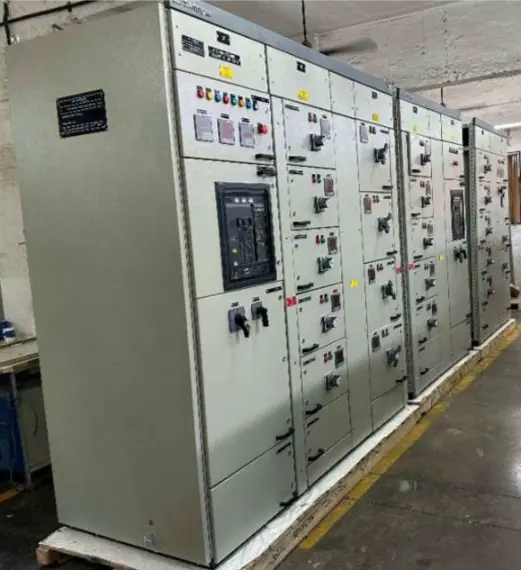

L&T Ti TTA Panels
as latest IEC standard 61439-1&2
The Ti- based range Of LV are completely verified testing with and busbars. These panels are designed for high reliability & safety and 0Rration & maintenance in Indian tropical conditions.
Features
- Compliance to latest IEC standard 61439-1&2
- Robust panel structure, versatile assembly Cornpartmentalised up to Form 4b, bolted and flat-packed.
- Double deck busbar system reduces impedance & heat loss
- Designed for rated current up to 5000A
- Rated fault withstand current up to 100kA
- Adequate space for cabling
- Flexibility in cable/busbar entry
- Best-in-class insulation
- Ingress Protection up to IP54/ IP55 ; (IP2X after opening of door)
- High internal Arc withstand up to 85kA 0.5sec
- Seismic resistance design and verified in accordance with global standards of IFC 60068-3 (richter scale 9), ICC ES AC156 & IS 1893 Zone V requirement.
VERIFIED SAFE
- Ti design based range of LV switchboards has safety features to safeguard your system as well as personnel who operate it.
- Design Verified for Safety in accordance with IEC 61439-1&2 from design to assembly.
- Safer Busbars with high clearances & creepage of 25mm ph-ph and 19mm ph-N/ph-E.
- Form of Separation up to 4b with compartmentalized design as per IEC 61439-2
- No Accidental Contact with live parts or terminals for an operator during maintenance because of provision of rotary knob.
- Zero ‘Stray Voltage Doors and Panels – The LV switchboard panel doors are designed to prevent accidental opening and provisioned with Earthing contacts. The Earth bar running the length of switchboard, connected to every structural members ensure operator safety.
- Padlockable doors provide additional safety.
- Enhanced Ingress Protection– Even with doors open, a minimum of IP2X ensures that the operator does not come in contact with live terminals or parts during maintenance.
- Best-in-class Insulation with polyester glass support. Choice to use heat-shrinkable PVC sleeves for extra protection.
DESIGNED FOR CONVENIENCE
The Ti range incorporates a number of features that make your installation and maintenance easy.
- Wide cable alley
- Flexible busbar configuration
- Easy access doors, hinged doors that open up to an angle of 95 degree.
DESIGNED FOR COMPACTNESS and SPACE/COST SAVER
Ti offers flexibility and customization to suit your space requirements.
- Choice of Single-front or Double-front arrangement, multi-tier, half width modules and 440mm depth etc.
- Flexible Panel configuration with different heights with top/bottom busbar
Flexible cable entry/busbar entry position - Shared droppers
- Compact feeder modules
Operational Safety/ Maintenance
- Fully mechanical interlocking system ensures human safety.
- Fail-safe interlocking
- Access door integrated with interlocking system.
- Use of proven and low maintenance equipments and components
Applications
Airports, Metros, Railways, Datacentres, Smart Cities, Commercial Buildings, Hotels, Education,
Healthcare, Pharma, Defence, Chemical & Water treatment Plants and Automobile & Industry.
