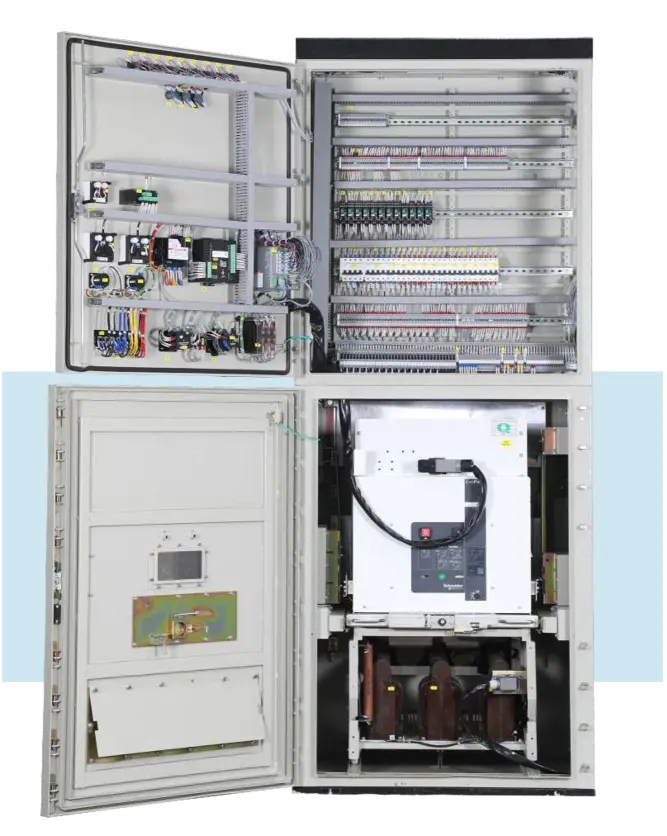

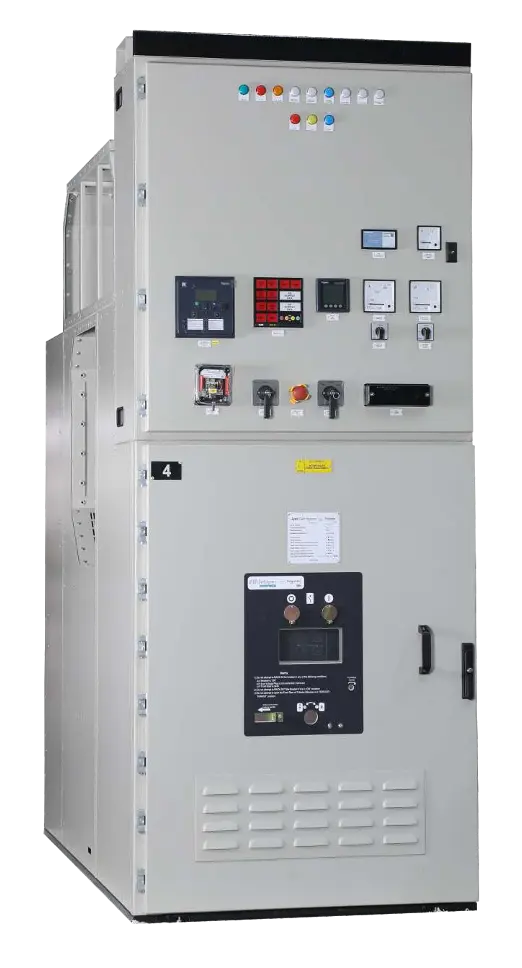

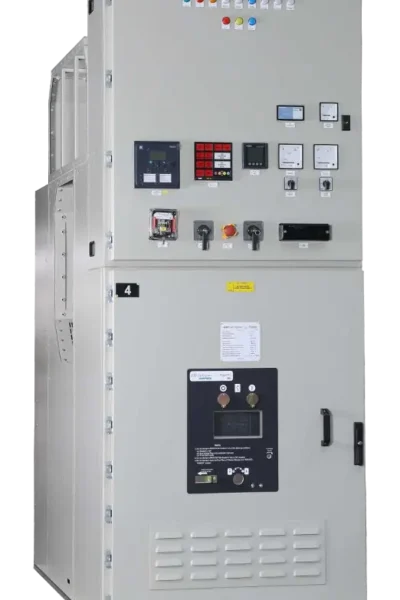

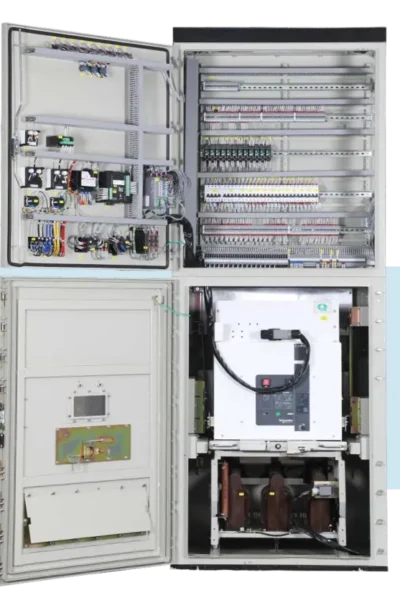

12 kV Switchboard type JS12 | 12kV, 1250A, 26.3kA/40kA
Metal-clad Air Insulated Switchgear With Schneider Electric Vacuum Circuit Breaker type HVX / Easypact
Vacuum Circuit breaker switchgear type tested as per IEC 62271-200 available in the following range:

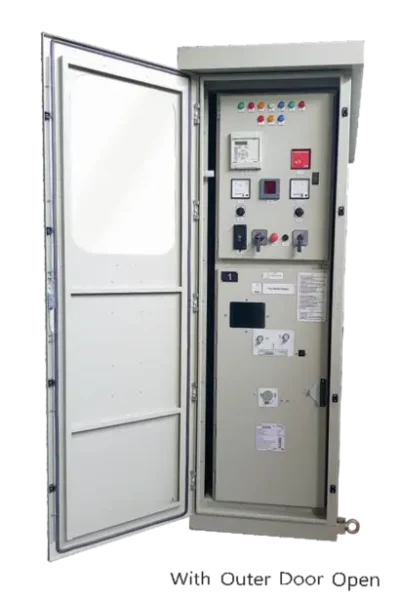

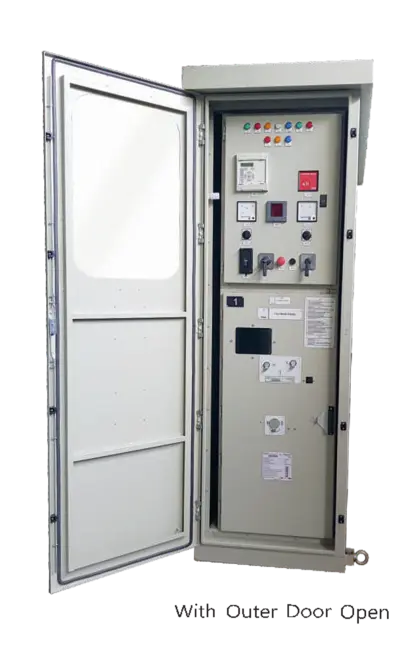

- Installation: Indoor/ Outdoor
- Rated Voltage: 12 kV
- Rated Current: up to 2000A
- Rated STC: 26.3kA and 40kA for 3 sec
- Rated BIL: 28kV/75kVp
- IP : IP 4X standard for Indoor, IP 55 for outdoor, higher on request
Applications:
- Utilities and Power Plants
- Industries and Mines
- Renewable Energy installations
- Airports, Ports, Railways etc
- Supermarkets, Malls, Hospitals, Data Centres, Real Estate & Infrastructure Projects
