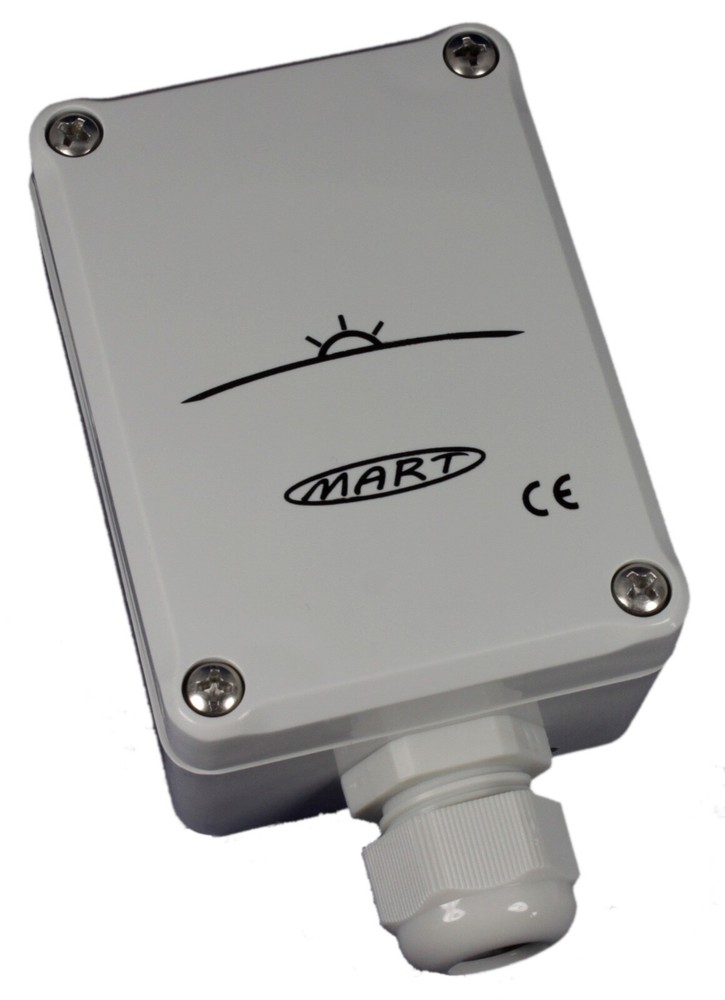

Twilight Switch MART TS-31-1 IP65, Pg 13,5 230V 16A 4000W Adjust
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 60 Days |
| Refund Will Be Given As | Money Back |
| Box Shape | Rectangular |
| Brand | MART |
| Selected Search Filter | Twilight Switch |
| Features | 0.2W power consumption |
| Particle Board Nung | 221-240 V |
| MPN | TS-31-1 |
| Safety Class | IP65 |
| Connection Type | Power |
| Type | Twilight Switch |
| EAN | 5904730567169 |
| Material | ABS |
| Bedienungsart | Sunlight controlled |
| Model | TS-31-1 |
| Color | Gray |
| Interruption Type | Relay |
| Type Of Switch | Relay |
| Suitable For | Outdoor |
| Rated Current | 16-20 A |
| Use | House/Garden |
| Control Type | Potentiometer |
Twilight Switch MART TS-31-1 IP65, Pg 13,5 230V 16A 4000W AdjustThe description of this item has been automatically translated. If you have any questions, please feel free to contact us. about us ebay shop reviews Contact MART Electronics Owner Maciej Czajkowski Holzhauser Str. 72 13509 Berlin shipping DHL Mail of goods payment PayPal transfer Twilight switch TS-31-1 0.2W power consumption Equipment highlights: Our most sustainable product! only 0.2W own power consumption, in standby and during work the switching level is set logarithmically - thus precisely adapted to the light image High surge current resistance up to 100A Plastic-free packaging made from recycled paper Very robust, many of our switches have been in service for over 30 years Simple and professional assembly 3 year guarantee 4 status LEDs - for easier function control top quality by longstanding experience Made in the EU The twilight switch TS-31-1 automatically switches on the consumer (lamps, advertising sign, etc.) when it gets dark and switches it off again at dawn. In the twilight switch TS-31-1 you can also set a lower value range (1-30 lx) that is used for the outside lighting. The higher setting range (30-1000 lx) can be helpful for other applications. Functions of the twilight switch TS-31-1: logarithmic setting characteristic, which is divided into three sub-areas: Sub-range 1 ... 10 lx Sub-range 10 ... 100 lx Sub-range 100 ... 1000 lx Energy-saving area for controlling the lighting of streets, houses, parks, squares, etc. Standard area. the control of the lighting of showcases, advertising, blinds, exterior blinds, etc. low hysteresis, which leads to economical use of power. 4 LEDs as status lights. The LEDs provide information about the functional states (existing input voltage, reaching the switching value (without delay), switching on the consumer. In this way, you inform about damage to the consumer if the LEDs come on and the actual consumer does not. four connection terminals and plenty of space for the connection cables. High quality switching relay type G2RL-1-E from OMRON with a switching current of 16A. For installation, the cable is fed through the cable gland on the lower side of the housing and is hermetically sealed. Technical specifications: Operating voltage 230V AC, + 10%, - 15% frequency 50Hz Maximum switching current: Resistive load 16A, AC1 (4000 W) lightbulbs 10A (2500 W) Halogen lamps 8A (2000 W) Fluorescent lamps 8A (2000 W) LED and energy saving lamps 8A (2000 W) Power consumption 0.2W Adjustment range 1 ... 100 ... 1000 lx Hysteresis The twilight switch TS-31-1 automatically switches on the consumer (lamps, advertising sign, etc.) when it gets dark and switches it off again at dawn. In the twilight switch TS-31-1 you can also set a lower value range (1-30 lx) that is used for the outside lighting. The higher setting range (30-1000 lx) can be helpful for other applications. Energy-saving area for controlling the lighting of streets, houses, parks, squares, etc. The LEDs provide information about the functional states (existing input voltage, reaching the switching value (without delay), switching on the consumer. In this way, you inform about damage to the consumer if the LEDs come on and the actual consumer does not. For installation, the cable is fed through the cable gland on the lower side of the housing and is herm Kastenform Rechteckig Marke MART Ausgewählte Suchfilter Dämmerungsschalter Besonderheiten Mit Lichtsensor Besonderheiten Kabelverschraubung PG 13,5 Besonderheiten 16A Besonderheiten IP 65 Besonderheiten Einstellbar Besonderheiten LED zur Funktionskontrolle Besonderheiten Inrush Relais (Max Peak 100A) Besonderheiten 230V Besonderheiten 0,2W Stromverbrauch Spannung 221-240 V Herstellernummer TS-31-1 Schutzart IP65 Anschlussart Strom Produktart Dämmerungsschalter EAN 5904730567169 Funktion Strom sparen bei Außenbeleuchtung Material ABS Bedienungsart Sonnenlichtgesteuert Anzahl der Leitungseinführungen 1 Modell TS-31-1 Anzahl der Anschlüsse 1 Farbe Grau Stromart AC Unterbrechungsart Relais Schalterart Relais Geeignet für Außenbereich Geeignet für Wand Anzahl der Leitungswege 1 Nennstrom 16-20 A Anwendung Haus/Garten Steuerungsart Potentiometer Steuerungsart Drehknopf Steuerungsart Skala
