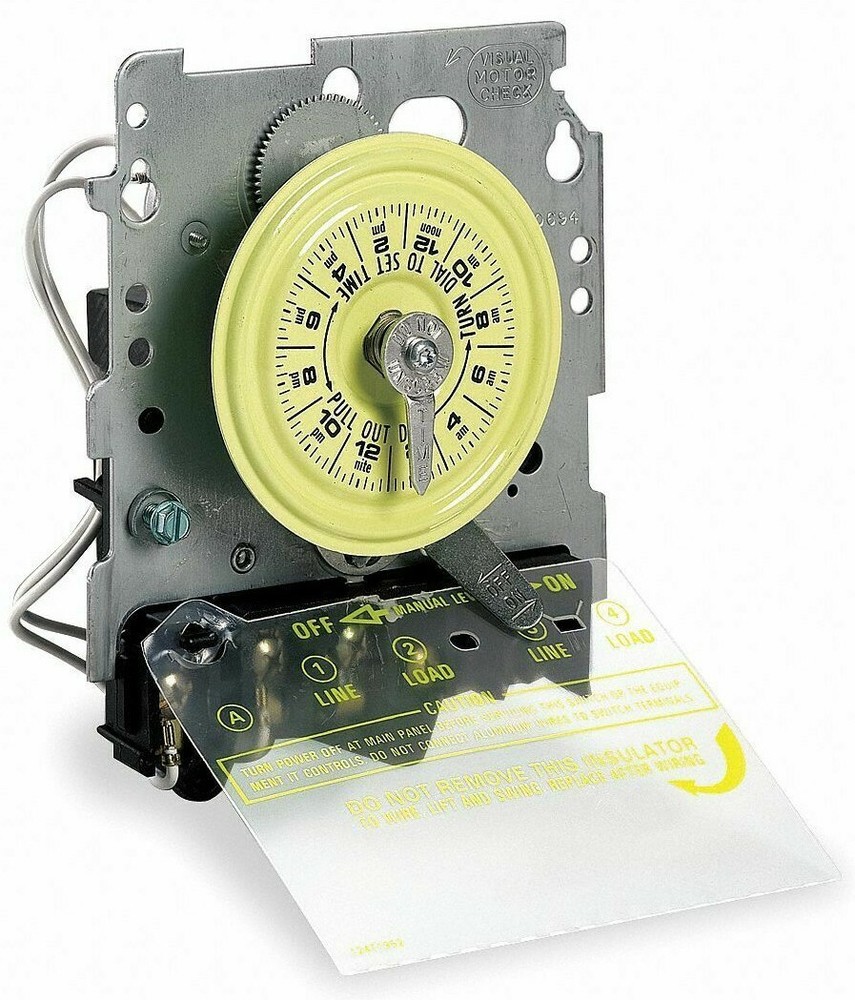

Swimming Pool Pump Timer Intermatic T104M 208-277 240 Volt Mechanism 24hr clock
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Power Source | Corded |
| MPN | T104M |
| Suitable For | Wall |
| Port Type | Power |
| Control Style | Dial |
| Color | Gray |
| Orientation | Timer |
| Brand | Intermatic |
| Operation Method | On/Off |
| Interruption Type | Switch |
| Switch Style | Rotary |
| Voltage | 277 V |
| Features | Timer |
| Mounting Style | Wall |
| Maximum Amperage | 40 A |
| Material | Metal |
| Electrical Connection | Screw Terminal |
| Type | Timer Wall Switch |
| Bulb Compatibility | Incandescent |
| Model | T104M |
| Resistance Properties | Weatherproof |
DescriptionIntermatic T104M 24-Hour Mechanical Time Switch - Mechanism Only, 208 - 277V.Enclosure: Beige electrical grade plastic.Size: PB300 Series: 2-3/8 (6.0 cm) high and wide. EB suffix: 1-1/18 (28 cm) deep. E suffix: 7/8 (2.2 cm) deep.Electrical Rating: A = 16 Amp resistive, 0.5 HP motor load 24, 120 or 240 volts, 50-60 Hz; B = 20 amp resistive, 10 amp (1200 watt) tungsten, 16 FLA (1 HP) motor load, 720 VA pilot duty - 120 volt, 50-60 Hz; C = 20 amp resistive, 12 FLA (2 HP) - 240 volts, 50-60HzAgency Approval: ULDetailsIntermatic T104M 24-Hour Mechanical Time Switch - Mechanism Only. These heavy duty Time Switch Mechanisms are designed for industrial, commercial and residential applications, and have the highest motor load ratings in the industry. They provide up to 12 ON-OFF operations each day with minimum ON-OFF time of 1 hour. All models are equipped with ON and OFF trippers and can be installed in almost all Intermatic enclosures.Specifications:208-277 VAC, 60 HZ.
