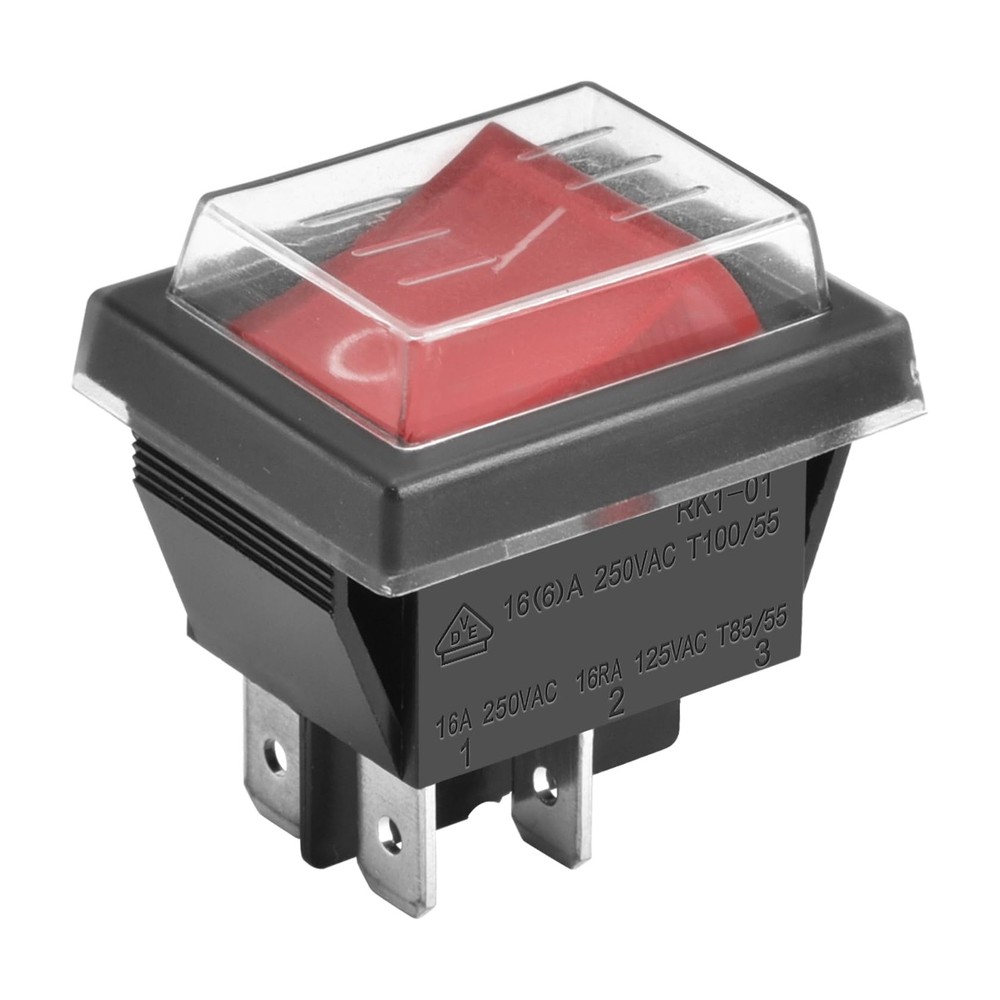

Heschen Rocker Switch On-Off DPST 4 Terminals Red Light 16A 250VAC with Waterpro
USD 8.79 USD
Specifications
| Package Dimensions LxWxH | 2.76x2.13x1.1 Inches |
| Part Number | Rk1-01-Hs-P |
| Unit Count | 1.0 |
| Controller Type | Push Button |
| Wattage | 4000.0 |
| Contact Type | Normally Open |
| ISBN | 0670534172520 |
| Control Type | Binary |
| Operating Voltage | 250.0 |
| Connectivity Protocol | X-10 |
| Voltage | 250.0 |
| Contact Material | Copper |
| Connector Type | Quick Connect |
| Insulation Resistance | 100.0 |
| Actuator Type | Rocker |
| Control Method | Push Button |
| Color | Red |
| Current Rating | 16.0 |
| Terminal Type | Through Hole |
| Switch Type | Rocker |
| Lower Temperature Rating | -25.0 |
| Material | Plastic |
| International Protection Rating | Ip00 |
| Model Number | Rk1-01-Hs-P |
| Mounting Type | Panel Mount |
| Weight | 0.02 Pounds |
| Operation Mode | On-Off |
| Brand | Heschen |
| EAN | 0670534172520 |
| Circuit Type | 2-Way |
| Upper Temperature Rating | 85.0 |
| UPC | 670534172520 |
Contact Resistance: 100mOhm Max Insulated Resistance: 500VDC, 100Mohm Min Dielectrick Strength, Terminal and terminal: 1500VAC 5S; Terminal and ground: 3000VAC 5S Operating Termp: -25℃-85℃ Electrical Life: 10000 Cycles Mounting Hole Dimention: 28 * 21 mm Terminal: 6.3mm(1/4") Switch Rating: 16A, 250VAC Package Contect: 1 Rocker switch & weather-proof conver UL, VDE, TüV, ENEC,CQC listed
